Transfer terminals use industrial silos and bins to complete the core functions of receiving, storing, and dispatching bulk materials — divided into Core Storage Silos, Auxiliary Process Bins, and Functional Support Equipment.
Get A Free Quote
Manxing Engineering
Whether railway, port, or highway logistics parks — Manxing designs and builds complete bulk material handling infrastructures tailored to your transfer scenario, throughput, and material characteristics.
Core Storage Facilities
Temporary storage of materials awaiting onward transport, matched to material type and scale.
| Silo Type | Main Materials Stored | Key Features & Applications |
|---|---|---|

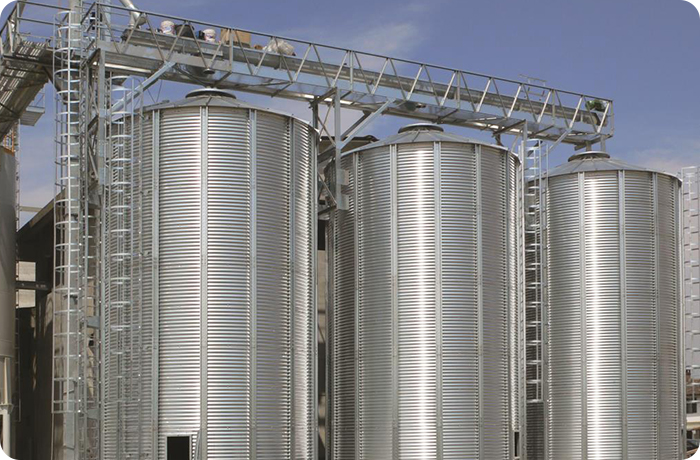

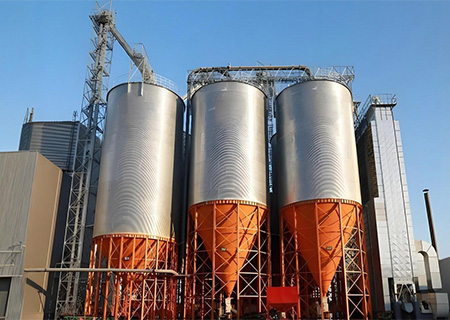

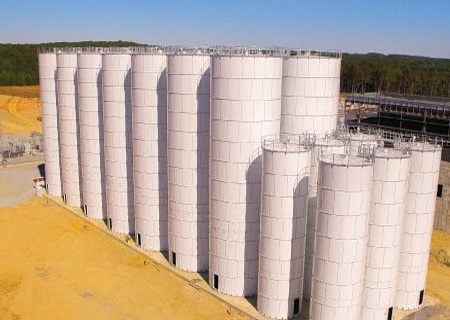

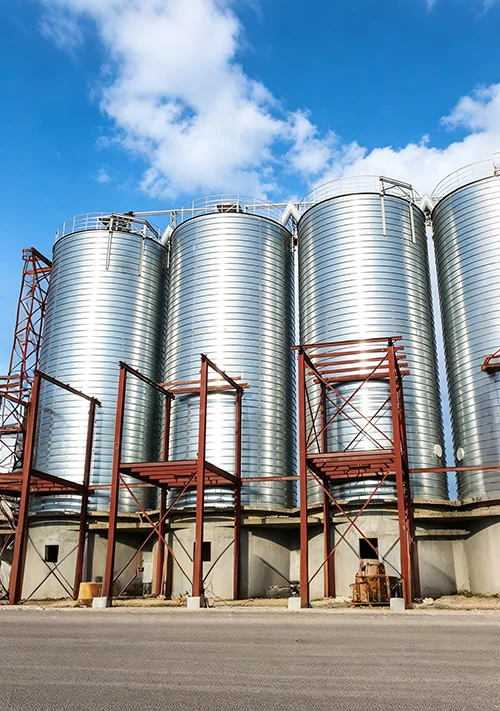

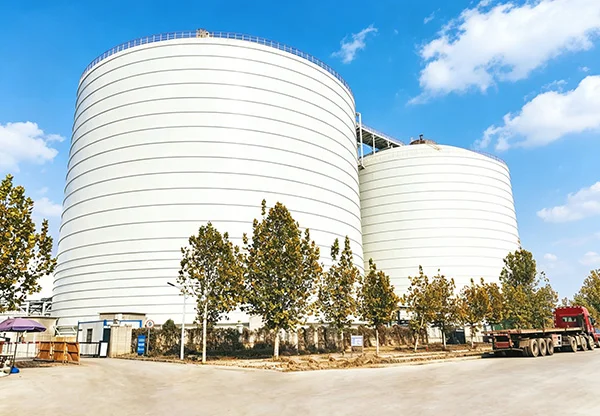

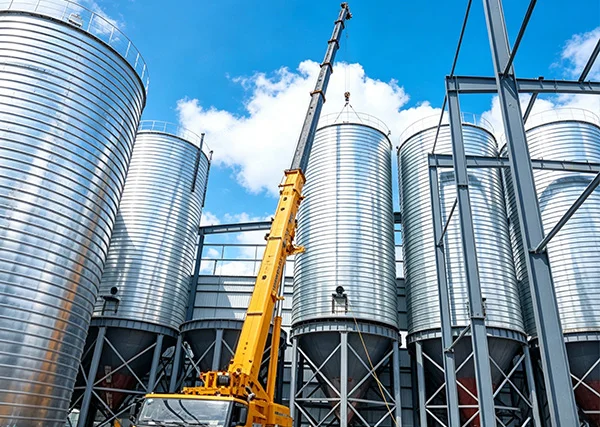

| Steel Silos | Cement, fly ash, clinker, mineral powder, grain, fertilizer, plastic pellets, petroleum coke | Lightweight, lower cost, short construction period, high standardization — mainstream choice. Subtypes: Bolted (large capacity), Spiral/Helical (good sealing, small–medium), Welded (extra-large capacity). |
| Reinforced Concrete Silos | Grain, coal, ore, other bulk commodities | Traditional type — durable, long service life (up to 50 years). Suitable for long-term storage or corrosive environments. Higher cost and longer construction period. |
| Special Material Silos | Coal powder, petroleum coke, flammable powders | Coal powder: explosion-proof & self-ignition prevention; Petroleum coke: moisture & fire protection; Meal/feed: ventilation systems. |
Process Flow
These bins determine the overall efficiency of the transfer system — from ship unloading to truck dispatch.
Directly receives material from trains or trucks; buffering and guidance
Discharge points (railway lines)Balances speed differences between incoming feed and downstream conveyor; ensures continuous operation
Between unloader & belt conveyorPrecise weighing before discharge; trade settlement or recipe batching with load cells
Dispatch / shipping stageFinal transfer step; rapid loading of trucks or trains with high-speed quick loading systems
Under load-out towerSpecial Purpose
Specialized bins for blending, difficult materials, and flexible handling scenarios.

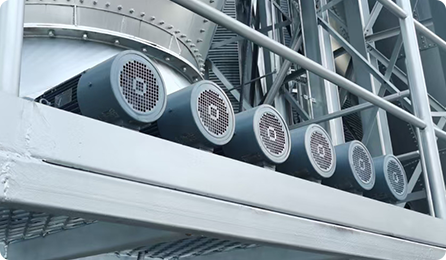

Mixes different grades of materials to meet downstream quality requirements

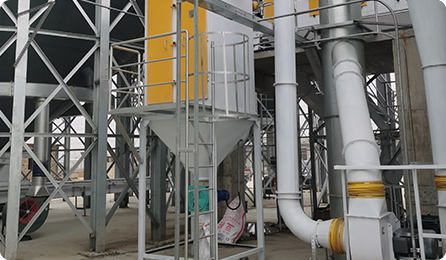

For sticky, wet, easily clogging materials (clay, tailings filter cake)
Flexible handling of small batches or multiple product types; temporary berths or transfer points
Application Scenarios
Upstream and downstream methods determine the required bin configuration for each terminal type.
| Transfer Scenario | Receiving Method | Dispatching Method | Key Configuration |
|---|---|---|---|

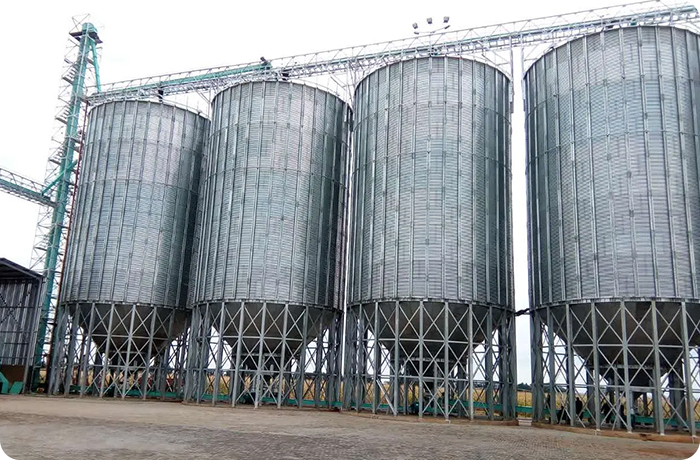

| Railway Terminal | Train (dumper or screw unloader) | Truck, belt conveyor | Pit-type receiving hopper, collection pit, large-capacity transfer silos |

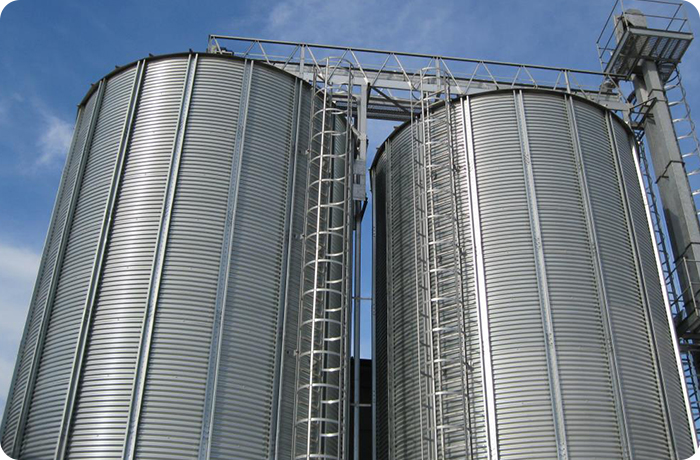

| Port / Marine Terminal | Bulk carrier (ship unloader) | Train, truck, re-shipment | Surge bin (ship-to-belt speed matching), discharge bin, auto distribution system |
| Highway Logistics Terminal | Dump truck | Truck, production line | Receiving hopper, small–medium steel silos, load-out bin |
| In-Plant / Line-Side Storage | Train / truck | Production line | Surge bin, batching bin, weighing bin |
Why Manxing
Professional industrial silo design and construction engineering — end-to-end from receiving to load-out.
Steel silos (bolted / spiral / welded), concrete silos
End-to-end: receiving → storage → discharge → load-out
Wear-resistant, corrosion-proof, explosion-proof, anti-clogging designs

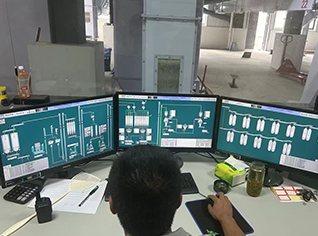

Conveying, dust collection/environmental, automation control systems

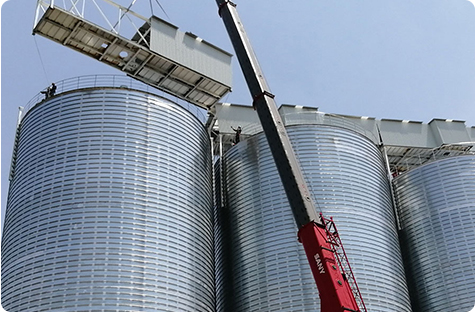

One-stop service from design to handover
Ready to discuss your terminal project?
Request a Proposal >Our professional team will reply to you with in 24 hours. Please feel free to contact us!

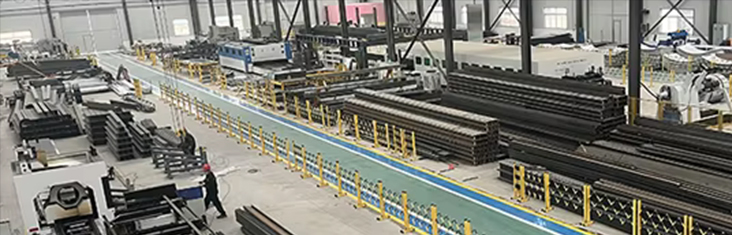

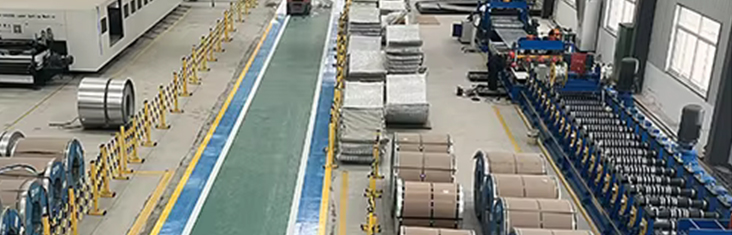

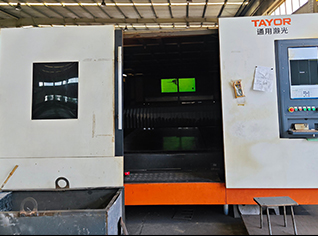

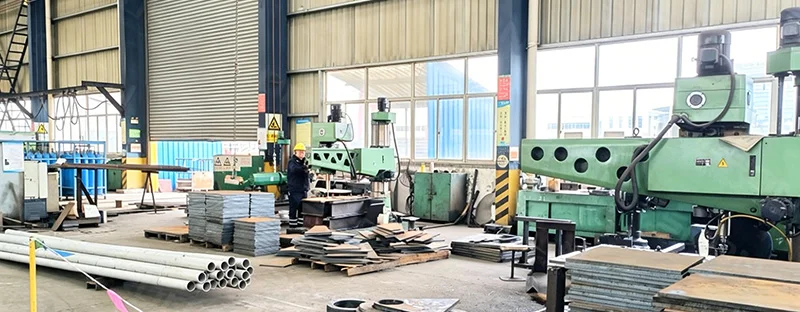

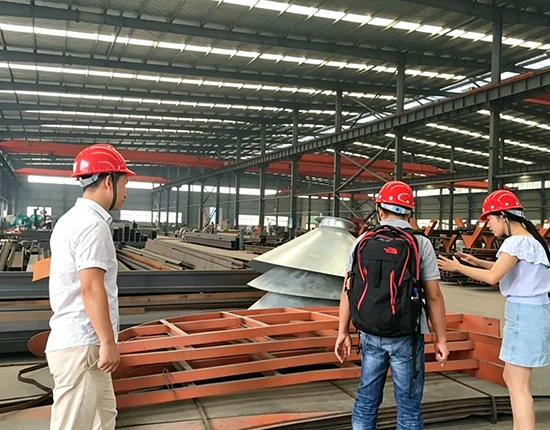

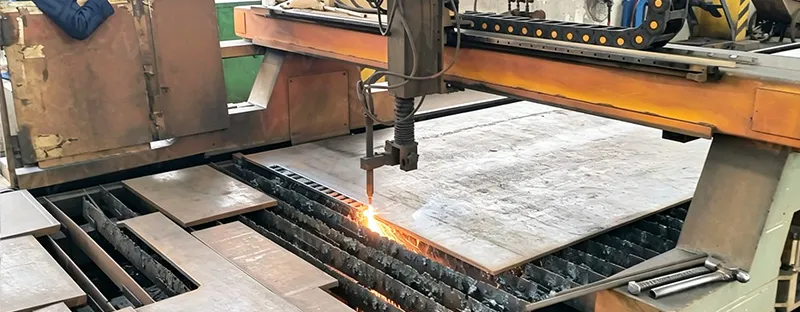

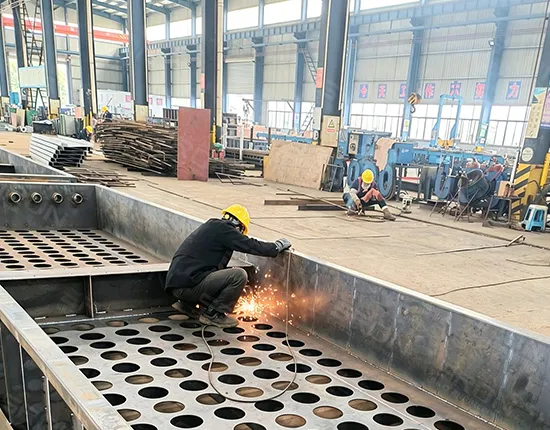

Production equipment and raw material testing, casting good products
