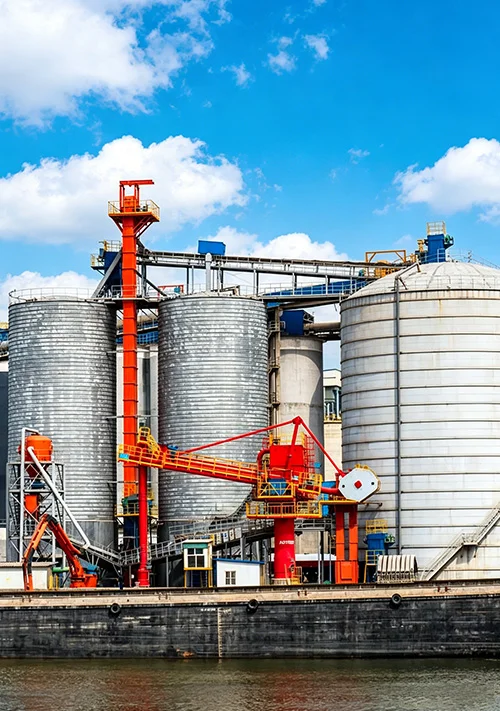

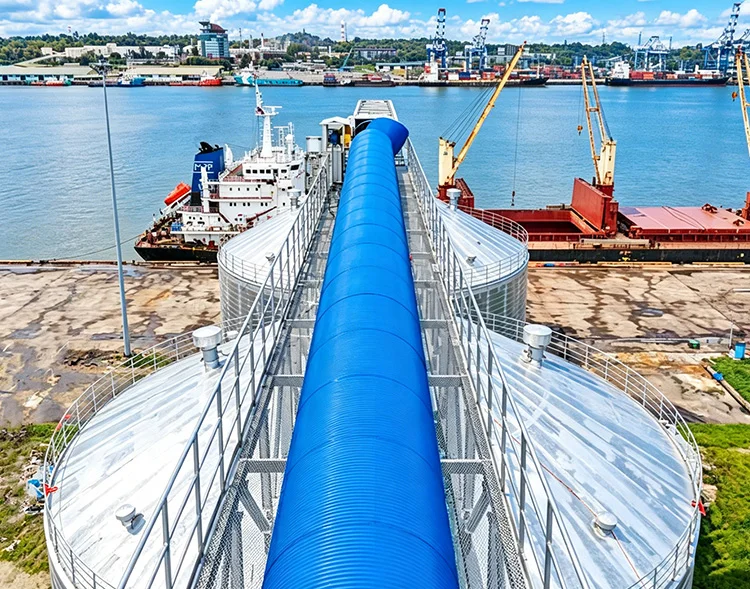

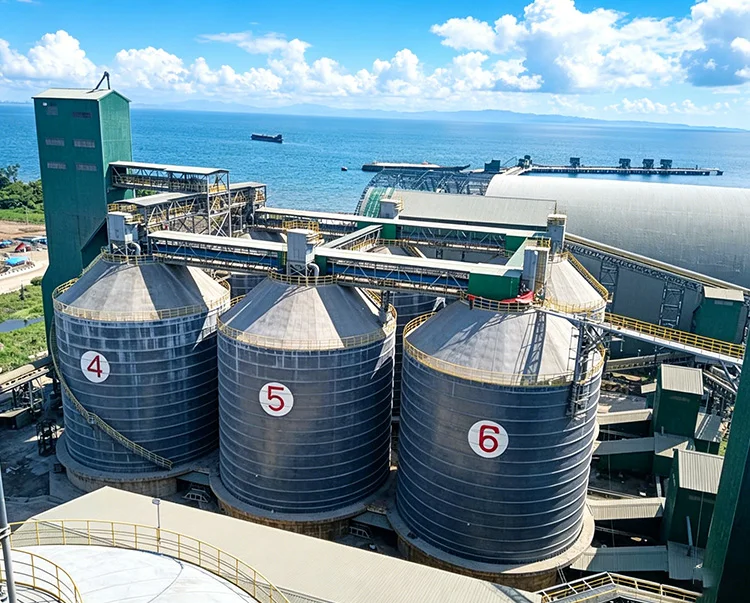

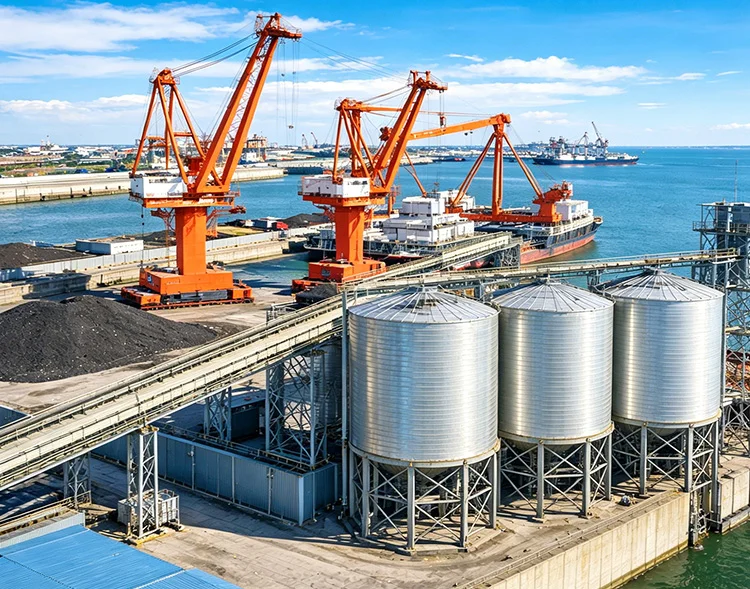

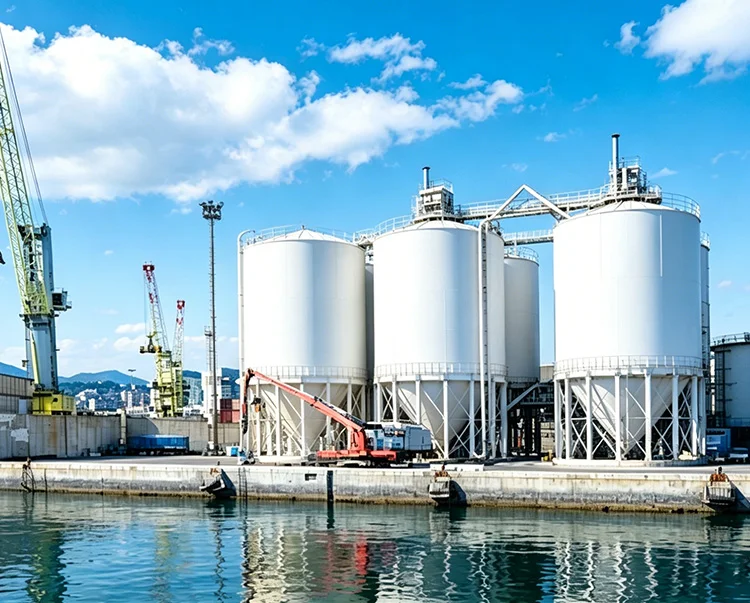

In industrial material terminal transfer operations, the core requirements are efficient ship unloading, temporary storage, and precise discharge of bulk commodities. Terminals typically deploy an integrated system consisting of multiple industrial silo types – not just a single silo.
Get A Free Quote
Manxing Engineering
Manxing provides comprehensive industrial silo design, engineering, and construction services for terminal transfer silo systems, tailored to your specific material characteristics and operational needs.
Storage Materials
Choose the right silo type and configuration based on your material characteristics.
| Material Example | Recommended Silo Type | Key Configurations |
|---|---|---|
| Cement / Fly Ash | Steel or Concrete Silo | Moisture seal, pneumatic conveying, anti-bridging |
| Coal | Concrete or Steel Silo | Temperature monitoring, gas detection, inerting system, explosion vents |
| Iron Ore / Copper Concentrate | High-Strength Concrete Silo | Wear-resistant liners, heavy-duty structure, air cannons |
| Fertilizer / Salt | Stainless Steel Silo | Anti-corrosion coating, anti-caking devices |
| Clay / Tailings Filter Cake | Live Bottom / Vibrating Bottom | UHMWPE liners, air cannons, vibrating feeders |

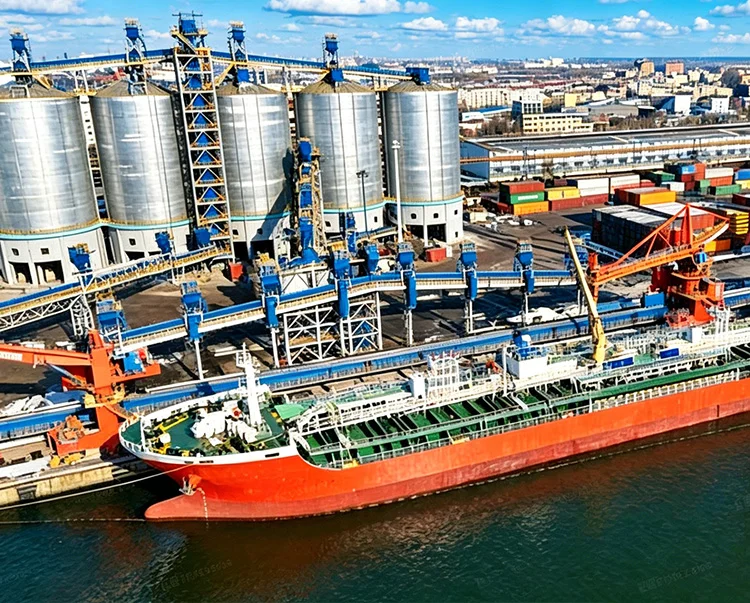

| Grain (corn, soybean) | Concrete or Steel Silo | Ventilation, temperature monitoring, dehumidification, fumigation |
Throughput Planning
Match your terminal scale with the right capacity and feed rate to optimize efficiency.
| Terminal Scale | Annual Throughput | Recommended Total Capacity | Individual Silo Size | In / Out Feed Rate |
|---|---|---|---|---|
| Small Terminal | < 1 million tons | 50,000 – 150,000 t | 1,000 – 5,000 t/silo | In: 500–1,000 t/h Out: 300–800 t/h |
| Medium Terminal | 1 – 5 million tons | 150,000 – 500,000 t | 5,000 – 20,000 t/silo | In: 1,000–3,000 t/h Out: 800–2,000 t/h |
| Large Terminal | 5 – 20 million tons | 500,000 – 1.5M t | 10,000 – 50,000 t/silo | In: 3,000–8,000 t/h Out: 2,000–5,000 t/h |
| Extra-Large Terminal | > 20 million tons | > 1.5 million t | 30,000 – 100,000 t/silo | In: > 8,000 t/h Out: > 5,000 t/h |
Hopper Configuration
Key process bins in a terminal silo system and their roles in the material flow chain.
Direct receiving from ship discharge; buffering and guiding
Terminal front (waterside)Balances speed differences between ship unloader and downstream conveyor
Between unloader & conveyorPrecise weighing before discharge; trade settlement and batching
Equipped with load cellsFinal transfer step; rapid loading to next transport mode
Under ship loader / truck towerIntegrated Systems

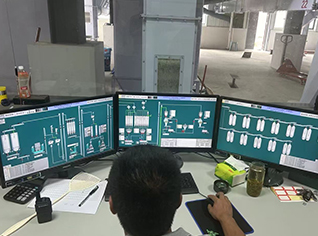

A complete environmental and intelligent control platform for modern bulk material terminals.
| Module | Function | Key Equipment / Technology |
|---|---|---|
| Automatic Distribution | Auto-switch filling points based on level | Rotary distributor, plow feeder, PLC control |
| Continuous Level Monitoring | Real-time material distribution inside silo | Radar level sensor, 3D scanner, plumb bob |
| Automatic Blending | Precise discharge by ratio | Weigh feeder, VFD control, algorithm |
| Smart Inventory | Auto inventory without manual entry | 3D laser scanning, drone inspection |
| Predictive Maintenance | Early fault warning, reduce downtime | Vibration monitoring, temperature sensing, big data |
Application Scenarios
Purpose-built configurations for every terminal type and material requirement.

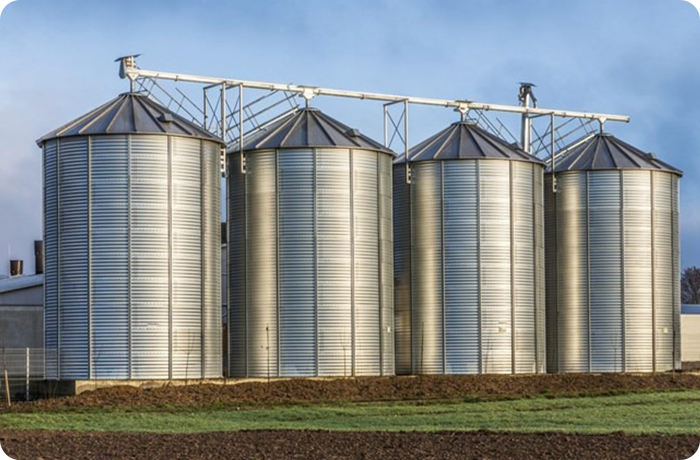

2–3 × 3,000 ton steel silos + basic automation + baghouse filter

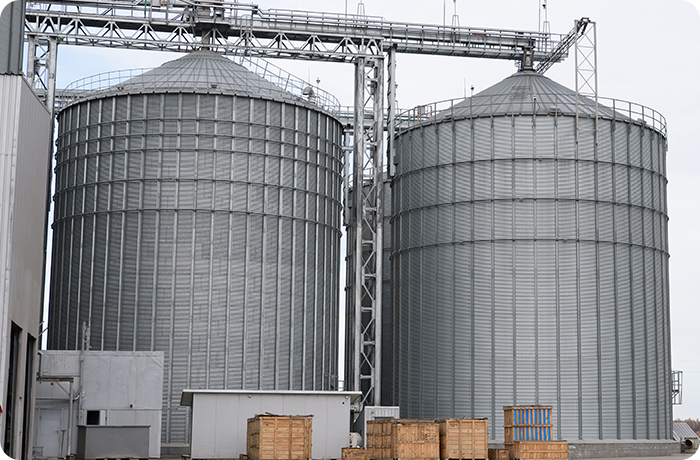

4–6 × 10,000 ton concrete silos + intermediate automation + dry fog

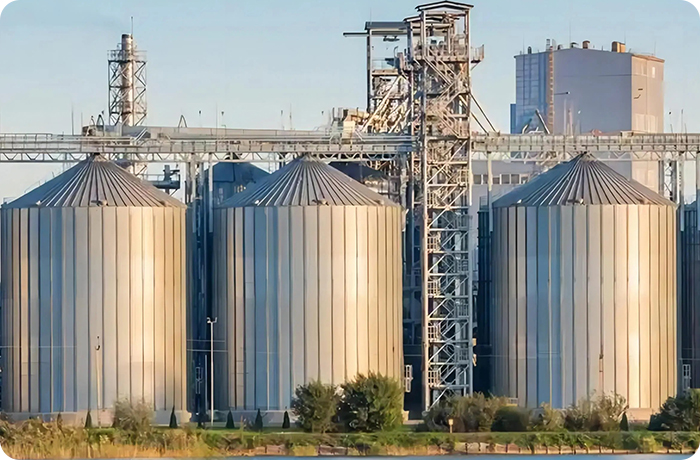

8–12 × 20,000–50,000 ton concrete silos + intelligent system + wear liners
Silo group + ventilation / temperature / fumigation + fully automatic in/out
Fully enclosed silo group + inerting system + gas monitoring + zero emission
Our Strengths
Industry-leading capabilities and proven engineering excellence across all terminal types.
Industrial silo design & construction engineering
Structural, mechanical, electrical, intelligent integration
Coal, grain, cement, mining terminals worldwide
One-stop service from design to handover
International safety & environmental standards
Balance initial investment with long-term operational cost
Our professional team will reply to you with in 24 hours. Please feel free to contact us!

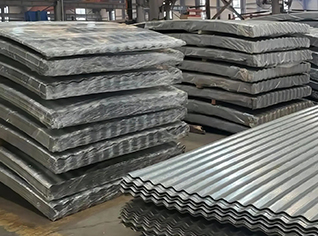

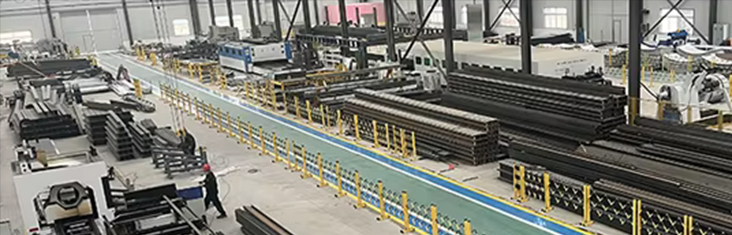

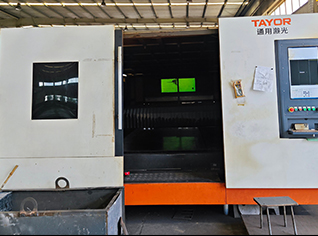

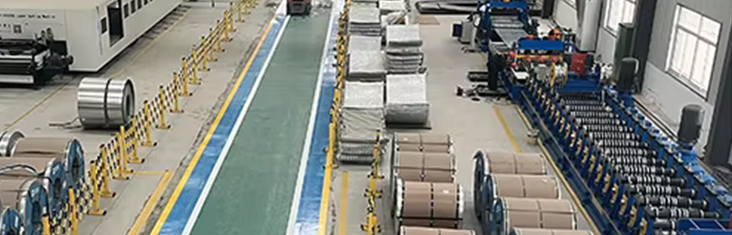

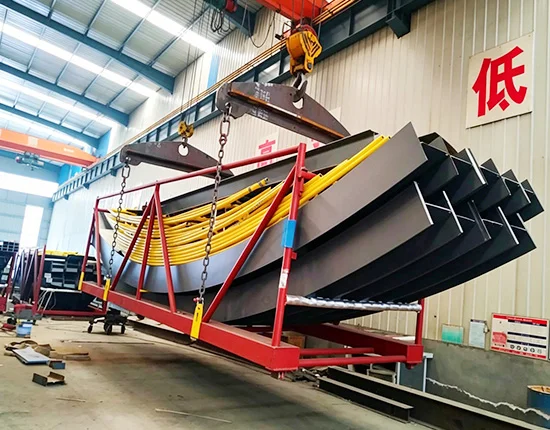

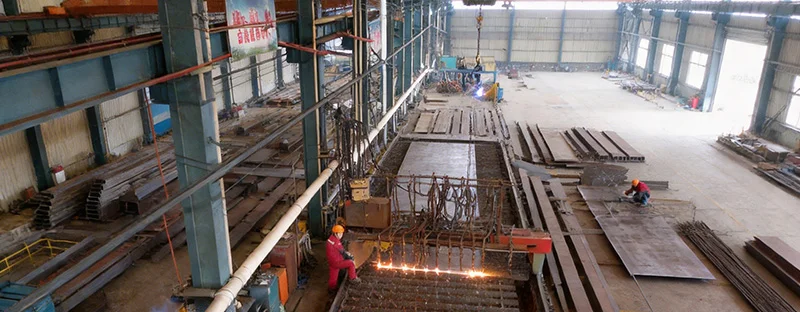

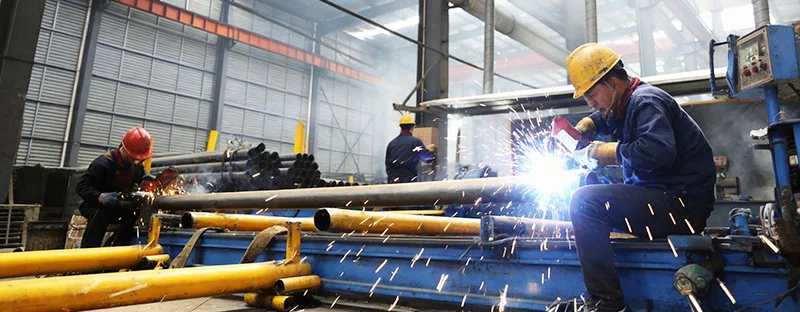

Production equipment and raw material testing, casting good products

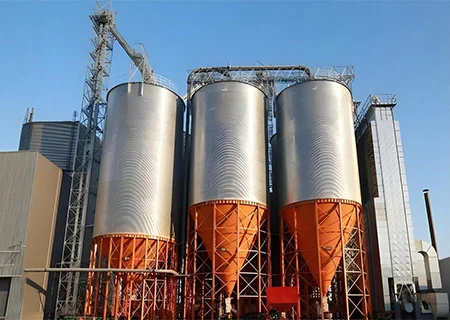

When it comes to storing, moving and managing large quantities of grain while ensuring safety, Manxing is your trusted partner.
