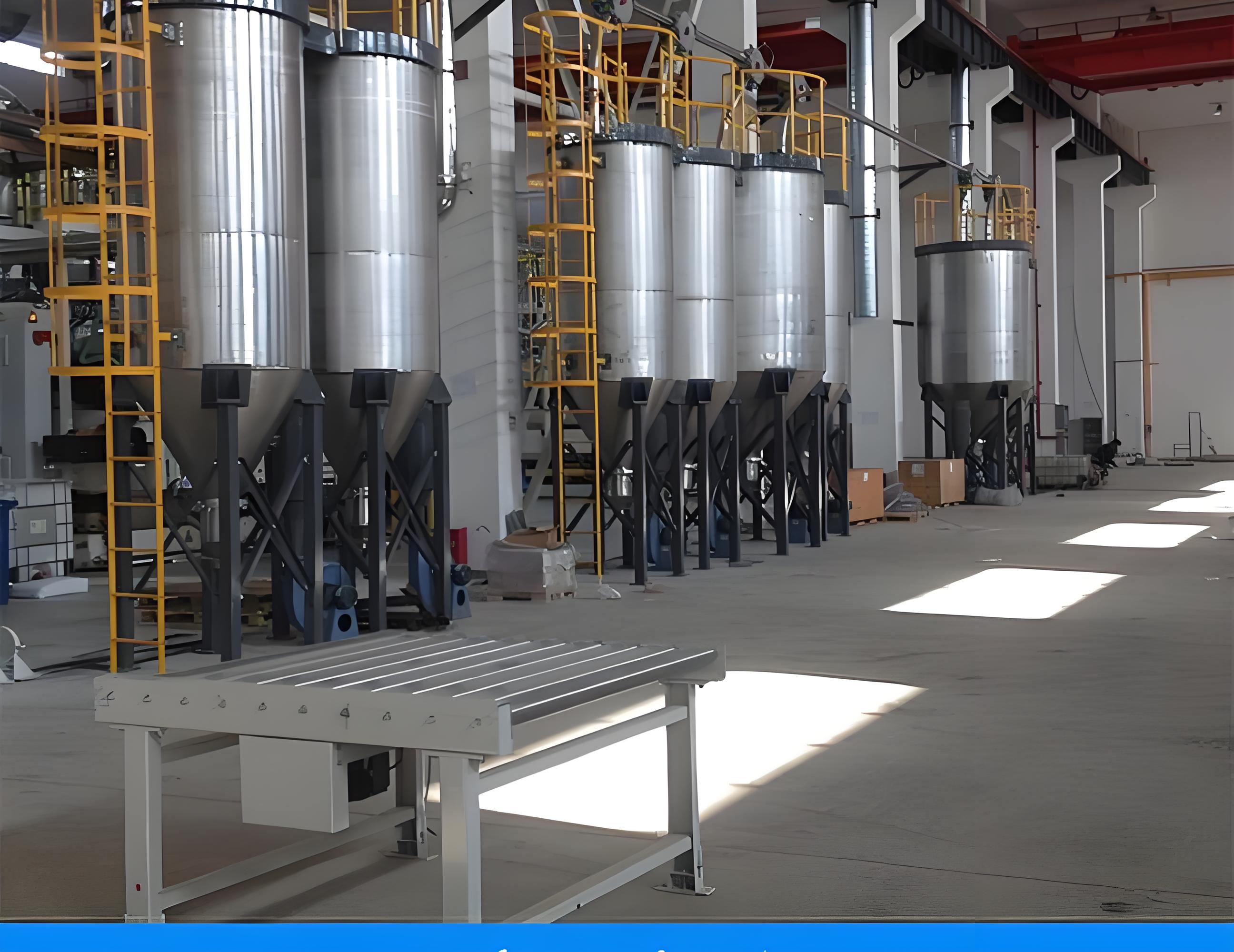

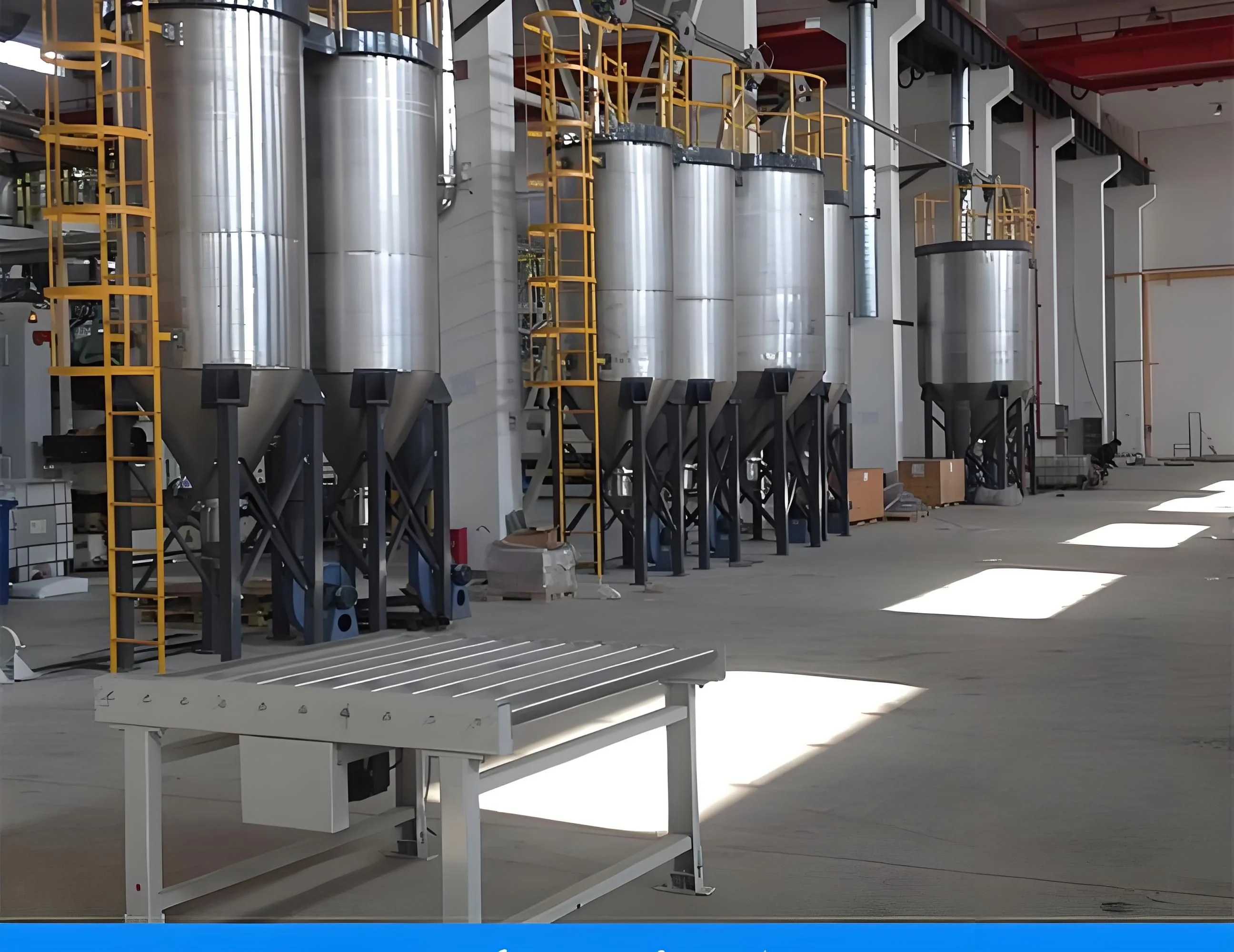

Project Overview
The pneumatic conveying system was designed to transport plastic particles over a distance of up to 160 meters. Utilizing a positive-pressure conveying method, the system can handle a capacity of 1000 kg/h, making it suitable for high-volume production environments.
System Design
Conveying Method: The positive-pressure pneumatic conveying system was selected for its ability to efficiently move materials over long distances without the risk of contamination or material degradation.

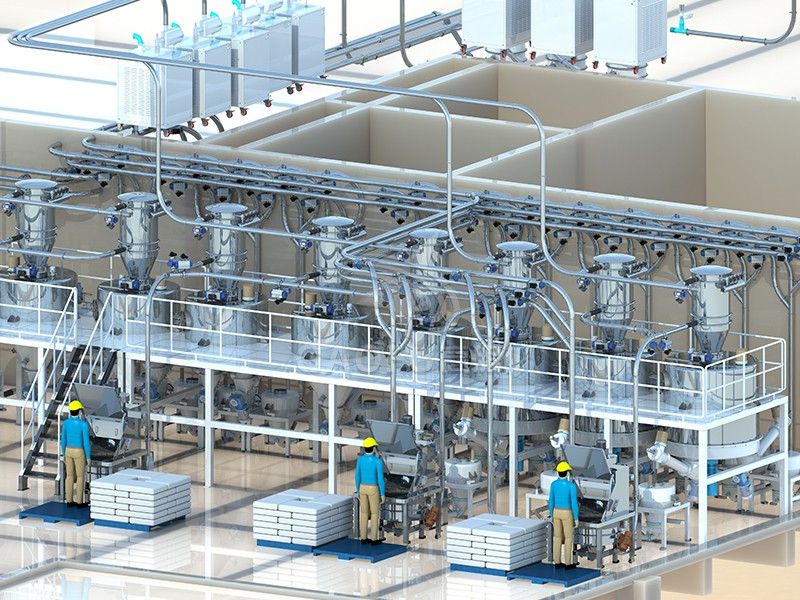

Layout and Equipment: The system features a series of interconnected pipes and valves, optimized to facilitate smooth movement of plastic particles. Key components include:
High-capacity pneumatic pumps to generate the necessary pressure.
Specialized piping to minimize friction and maintain material integrity.
A dust collection system to ensure a safe working environment.
