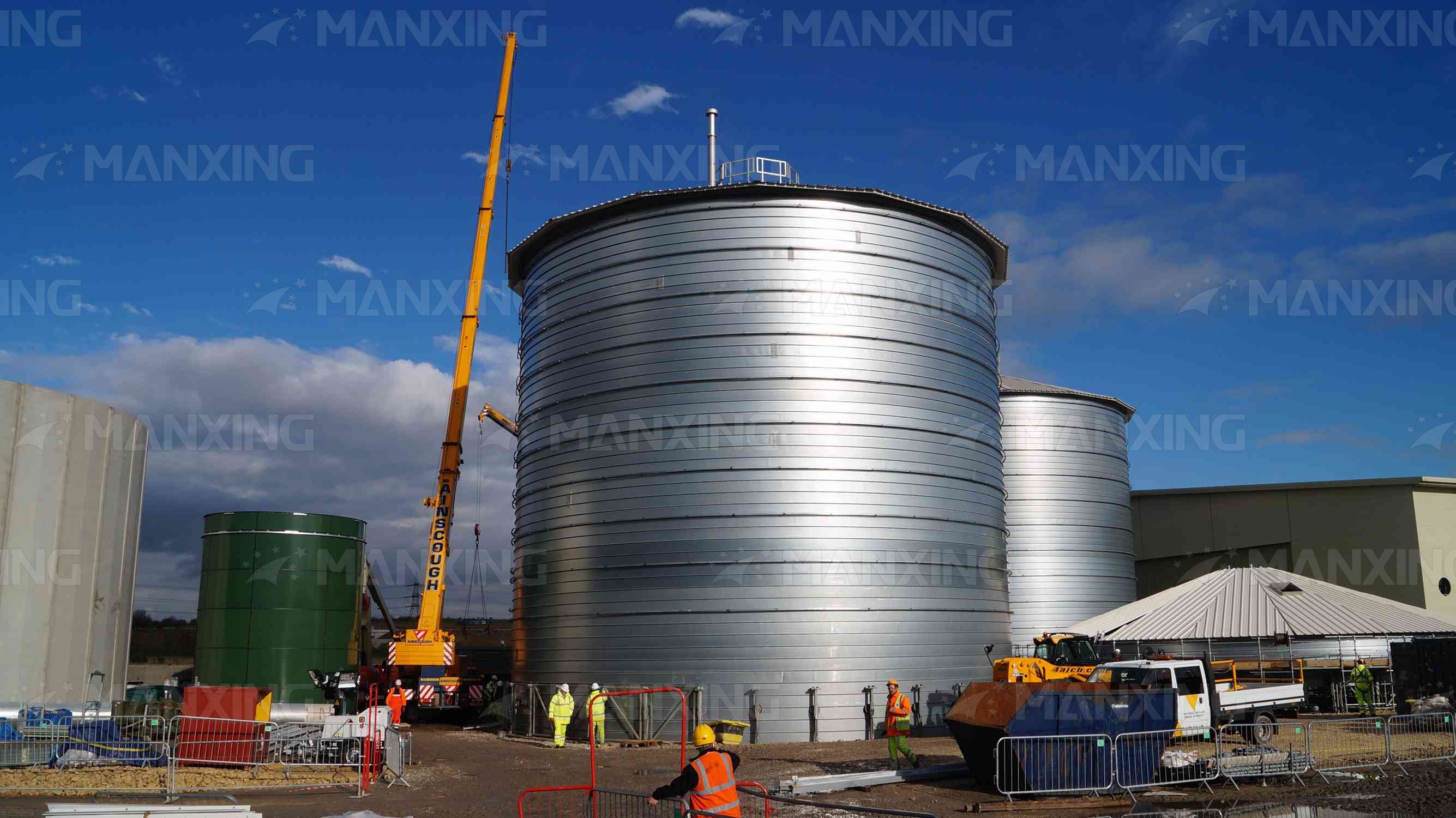

Fly ash silos are critical components in power generation and construction industries, storing this fine byproduct of coal combustion for use in concrete production and other applications. Despite their importance, many silo projects encounter preventable design errors that lead to structural failures, operational inefficiencies, and costly repairs. This expert analysis identifies common mistakes in fly ash silo design and provides actionable solutions for project managers and engineers to ensure safe, efficient, and durable storage systems.
Inadequate Material Flow Analysis
One of the most frequent errors in fly ash silo design is insufficient analysis of material flow properties. Fly ash is a cohesive, fine powder with particle sizes typically under 45 microns, exhibiting poor flow characteristics that can lead to bridging, rat-holing, and erratic discharge. Many designers rely on generic bulk material data rather than conducting specific tests on the actual fly ash to be stored. This oversight results in silos with incorrect hopper angles, discharge openings, or flow aid systems that fail to handle the material effectively. In a recent project in the Midwest, a 500-ton capacity silo experienced persistent bridging despite vibration systems, requiring costly retrofitting with steeper hopper angles and air cannons after commissioning.
- Conduct comprehensive material testing including shear cell tests, wall friction measurements, and moisture content analysis
- Design hopper angles steeper than the material's effective angle of internal friction (typically 60-70 degrees for fly ash)
- Incorporate proper flow promotion devices such as mass flow hoppers, air fluidization systems, or mechanical dischargers
- Consider seasonal variations in fly ash properties due to temperature and humidity changes

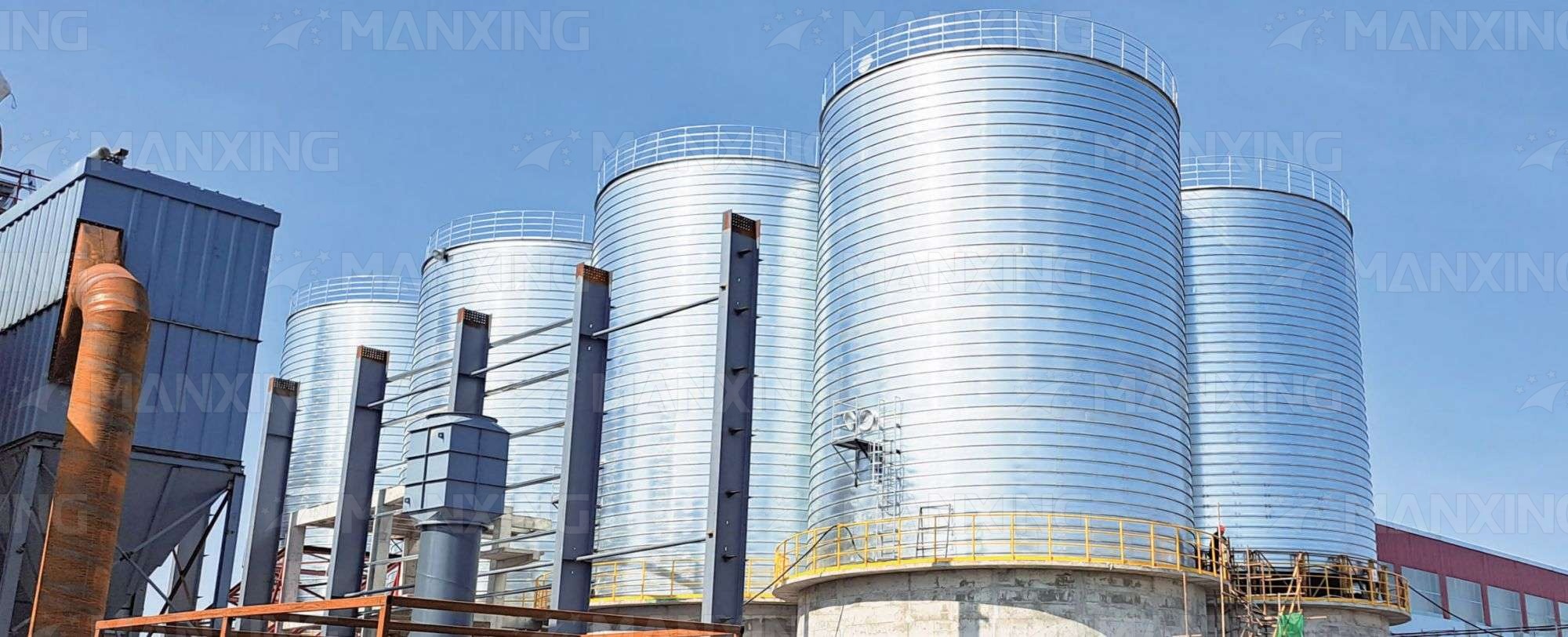

Ignoring Thermal Expansion and Contraction
Fly ash silos often operate in environments with significant temperature fluctuations, particularly in outdoor installations at power plants. A common design mistake is failing to account for thermal expansion and contraction of steel structures, which can cause buckling, weld failures, or structural distortion. Steel expands approximately 0.0000065 inches per inch per degree Fahrenheit, meaning a 100-foot tall silo can expand over 1 inch with a 100°F temperature change. Without proper expansion joints, sliding supports, or flexible connections, this movement creates stress concentrations that compromise structural integrity. An industrial facility in Texas experienced severe weld cracking in their fly ash silo after just two years of operation due to inadequate thermal design, requiring extensive reinforcement and downtime.
- Calculate thermal movement based on local temperature extremes and material coefficients
- Incorporate expansion joints at appropriate intervals in tall silo structures
- Use sliding supports or roller bearings to accommodate horizontal movement
- Design connections with sufficient flexibility to absorb thermal stresses without failure
Improper Ventilation and Aeration Systems
Fly ash requires careful handling of air systems for both material discharge and safety, yet many silo designs incorporate ventilation and aeration systems that are either inadequate or improperly configured. Insufficient venting can lead to pressure buildup during filling operations, potentially causing structural damage or safety hazards. Conversely, excessive or poorly directed aeration can create channeling that actually impedes material flow rather than promoting it. The fine particle size of fly ash makes it particularly susceptible to compaction and air-induced segregation when aeration systems are not properly designed for the specific material characteristics and silo geometry.
- Size vent systems based on maximum fill rates and material characteristics
- Design aeration pads with proper porosity and pressure ratings for fly ash applications
- Implement zone-controlled aeration systems that activate only where needed for discharge
- Include pressure relief valves and rupture discs as secondary protection measures
- Consider explosion venting requirements for combustible dust applications
Neglecting Structural Load Dynamics
Many fly ash silo designs focus primarily on static loads while underestimating dynamic forces that occur during operation. These include impact loads from material filling, eccentric discharge loads that create uneven pressure distributions, and seismic loads in earthquake-prone regions. Fly ash exhibits different pressure characteristics than other bulk materials due to its fine particle size and cohesive nature, with potential for sudden pressure surges during discharge. A silo in California designed without proper seismic considerations suffered significant damage during a moderate earthquake, requiring complete reconstruction with proper lateral force resistance.
- Calculate both static and dynamic loads using recognized standards such as ACI 313 or Eurocode 1
- Consider eccentric discharge scenarios with appropriate pressure multipliers
- Design for seismic loads in accordance with local building codes and material-specific requirements
- Incorporate proper reinforcement at stress concentration points like hopper transitions
- Use finite element analysis to validate structural performance under various loading conditions
Conclusion
Avoiding common mistakes in fly ash silo design requires a comprehensive approach that addresses material characteristics, environmental factors, operational requirements, and structural dynamics. By conducting thorough material testing, accounting for thermal effects, properly designing ventilation systems, and considering all load scenarios, engineers can create silos that operate reliably for decades. The solutions presented here provide actionable guidance for project teams to prevent costly errors and ensure optimal performance of fly ash storage systems. For complex projects or when dealing with challenging site conditions, consulting with specialized silo engineering experts can provide valuable insights and prevent design oversights that might otherwise go unnoticed until problems arise during operation.
