Scraper Chain Conveyor
Application: Buried scraper conveyor for metallurgy, machinery, light industry, food, transportation and other departments
Materials: Dust-like materials such as dust, small particles and blocks, and various food crops
Introduction
Download
Case
Related Products
Send Inquiry
Introduction

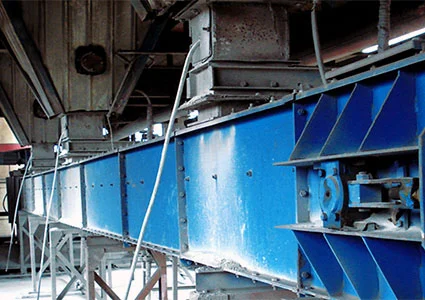

Scraper Chain Conveyor
Scraper Chain Conveyor
Reliable Enclosed Bulk Material Conveying Solution
Efficient Material Transportation for Industrial Applications
The Scraper Chain Conveyor, also known as a Buried Scraper Conveyor or Drag Chain Conveyor, is an enclosed continuous conveying system designed for transporting powdery, granular, and small lump materials over short to medium distances.
Widely used in cement plants, grain storage facilities, thermal power stations, mining operations, steel plants, and chemical industries, the conveyor utilizes the internal friction characteristics of bulk materials to achieve efficient and stable transportation within a sealed trough.
Our scraper conveyor systems are engineered for heavy-duty industrial applications and can be customized according to material properties, conveying capacity, conveying distance, and plant layout requirements.
Key Features & Advantages
Fully Enclosed Design
Sealed steel casing prevents dust leakage and material spillage, ensuring clean and environmentally friendly operation.
Energy-Efficient Conveying
Lower material resistance during transportation helps reduce operating power consumption compared with conventional conveying systems.
High Wear Resistance
Heat-treated alloy steel chains and wear-resistant scraper blades provide extended service life under demanding conditions.
Flexible Installation Layout
Supports horizontal and inclined conveying with multiple feeding and discharge points for flexible plant integration.
Large Conveying Capacity
Suitable for transporting cement, fly ash, coal powder, grain, biomass pellets, limestone powder, and chemical materials.
Low Maintenance Costs
Simple structure, robust drive system, and fewer moving parts help minimize downtime and maintenance requirements.
Technical Specifications
| Model | SCC1 | SCC2 | SCC3 | SCC4 | SCC5 | SCC6 |
|---|---|---|---|---|---|---|
| Bulk Density (t/m³) | 0.2-1.8 | 0.2-1.8 | 0.2-1.8 | 0.2-1.8 | 0.2-1.8 | 0.2-1.8 |
| Capacity (m³/h) | 15-30 | 23-46 | 36-72 | 59-118 | 83-166 | 115-230 |
| Max Conveying Distance (m) | 40 | 40 | 40 | 40 | 60 | 60 |
| Inclination Angle | 0-15° | 0-15° | 0-15° | 0-15° | 0-15° | 0-15° |
| Chain Pitch (mm) | 100 | 125 | 160 | 200 | 200 | 250 |
* Custom capacities and conveying distances are available upon request.
Applications
Cement Powder
Clinker Dust
Fly Ash
Limestone Powder
Coal Powder
Grain Handling
Feed Pellets
Biomass Pellets
Thermal Power Plants
Mining & Metallurgy
Chemical Powders
Fertilizer Industry
