Introduction

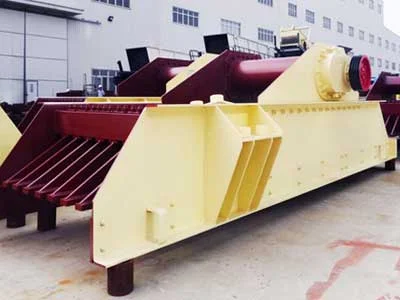

Vibrating Feeder
Vibrating Feeder
Heavy-Duty Feeding Equipment for Cement Plants, Aggregate Production and Bulk Material Handling Systems
Reliable and Continuous Bulk Material Feeding Solution
It is widely used in cement plants, aggregate production lines, mining operations, steel plants, power stations, and material handling systems where stable and controlled material feeding is essential for maintaining production efficiency.
The vibrating feeder can handle a wide range of materials, including limestone, clinker, coal, gypsum, aggregates, iron ore, sand, gravel, and other bulk solids.

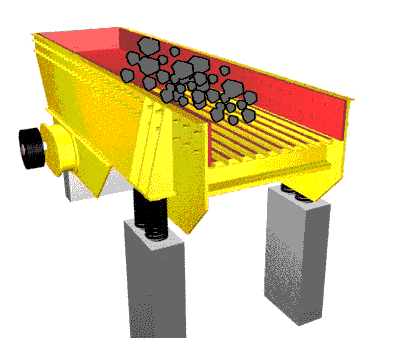

The equipment utilizes vibration generated by an exciter or vibration motor to move materials continuously along a feeding trough, ensuring uniform flow rates and reducing material blockages. Vibration frequency and amplitude can be adjusted according to process requirements, enabling accurate and efficient material control.
Key Features & Advantages
Uniform & Continuous Feeding
Provides stable and uninterrupted material flow to crushers, conveyors, screens, mills, and other processing equipment.
Adjustable Feeding Capacity
Feeding rate and vibration intensity can be adjusted according to material characteristics and production requirements.
Heavy-Duty Construction
Designed to withstand high material loads, impact forces, and harsh industrial operating environments.
Integrated Pre-Screening Function
Optional grizzly bar sections remove fines before materials enter primary crushers, improving overall plant efficiency.
Low Energy Consumption
Optimized vibration systems provide excellent feeding performance while minimizing power consumption.
Reliable Operation
Simple mechanical design and fewer moving parts result in lower maintenance costs and longer equipment life.
Types of Vibrating Feeders
GZD Series Vibrating Feeder
Suitable for medium-duty applications including aggregate production, cement raw material feeding, and general bulk material handling systems.
Features stable operation, large feeding capacity, simple maintenance, and reliable long-term performance.
ZSW Series Grizzly Vibrating Feeder
Designed for primary crushing plants, mining operations, and large aggregate production lines where pre-screening is required.
Features integrated grizzly bars, high impact resistance, excellent screening performance, and improved crusher efficiency.
Main Components
Feeding Trough
Heavy-duty steel trough designed to withstand impact loads and abrasive bulk materials.
Vibration Exciter
Generates controlled vibration force for smooth and continuous material transportation.
Drive Motor
Provides stable power for long-term industrial operation and feeding performance.
Spring Support System
Absorbs vibration energy and protects the machine frame and supporting foundation.
Grizzly Section (Optional)
Removes fine materials before crushing, reducing wear on downstream equipment.
Steel Support Frame
Provides structural stability and supports continuous heavy-duty operation.
Technical Specifications
GZD Series Vibrating Feeder
| Model | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|
| GZD-650×2300 | 300 | 80-100 | 2 × 1.2 |
| GZD-750×2500 | 350 | 100-130 | 2 × 1.5 |
| GZD-850×3000 | 400 | 120-150 | 2 × 3 |
| GZD-1000×3600 | 500 | 150-200 | 2 × 3.7 |
| GZD-1100×3600 | 580 | 240-300 | 2 × 3.7 |
| GZD-1300×3600 | 650 | 450-600 | 2 × 7.5 |
| GZD-1500×3600 | 1050 | 450-1000 | 2 × 7.5 |
| GZD-2000×3600 | 1200 | 550-1000 | 2 × 10 |
| GZD-2500×5000 | 1500 | 650-1500 | 2 × 18 |
ZSW Series Grizzly Vibrating Feeder
| Model | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kW) |
|---|---|---|---|
| ZSW-380×95 | 500 | 100-180 | 11 |
| ZSW-490×110 | 630 | 150-400 | 15 |
| ZSW-490×130 | 750 | 400-700 | 22 |
| ZSW-600×130 | 750 | 400-700 | 22 |
| ZSW-600×150 | 800 | 500-900 | 30 |
| ZSW-600×180 | 900 | 700-1300 | 45 |
| ZSW-600×200 | 1200 | 800-1500 | 55 |
* Custom capacities and configurations are available upon request.
Applications
Cement Plants
Used for limestone feeding, clay feeding, gypsum feeding, coal feeding, clinker handling, raw material transportation, and crusher feeding systems.

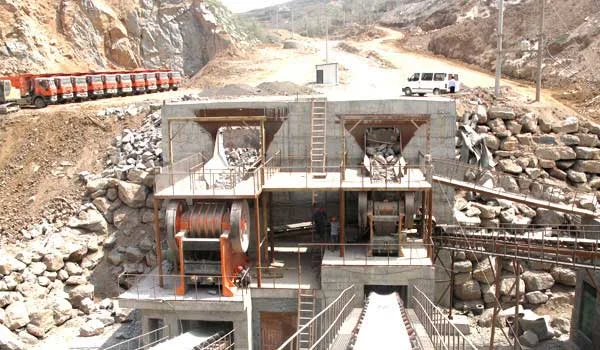

Aggregate Crushing Plants
Suitable for feeding river pebbles, granite, basalt, limestone, quartz, gravel, and construction aggregates.
Mining Industry
Widely used for feeding iron ore, copper ore, gold ore, coal, and mineral aggregates into crushing systems.
Power Plants & Bulk Storage Facilities
Applied in coal handling systems, biomass feeding systems, ash handling systems, grain silos, feed mills, and bulk terminals.
Typical Materials Handled
