Silo Discharge Aids: Air Cannons, Vibrators and Flow Promotion Systems
Silo discharge aids are mechanical, pneumatic, or acoustic devices that prevent or resolve material flow problems in storage silos and hoppers. They are the last line of defense when hopper geometry alone cannot guarantee reliable flow.
Key Takeaways
Air Cannons: Deliver 100-500L compressed air bursts at 4-8 bar to break bridges and rat-holes. Most effective for cement, fly ash, coal, and other cohesive powders. Typical installation: 4-12 units per silo.
Vibratory Bin Activators: Apply high-frequency vibration (1,500-3,600 RPM) to the hopper wall to promote flow. Best for medium-cohesive materials like limestone, sand, and grain.
Aeration Pads: Introduce low-pressure air (0.2-0.5 bar) through porous media to fluidize fine powders. Essential for cement, fly ash, and hydrated lime silos.
Discharge Aid Selection Guide
| Device | Mechanism | Best For | Limitation |
|---|---|---|---|
| Air cannon | High-pressure air burst | Cement, fly ash, coal | Requires compressed air supply |
| Vibratory motor | Mechanical vibration | Sand, gravel, grain | Can compact fine powders |
| Aeration pad | Air fluidization | Cement, lime, fly ash | Not effective for granular materials |
| Sonic cleaner | Low-frequency sound waves | Dust, light powders | Limited range, needs multiple units |

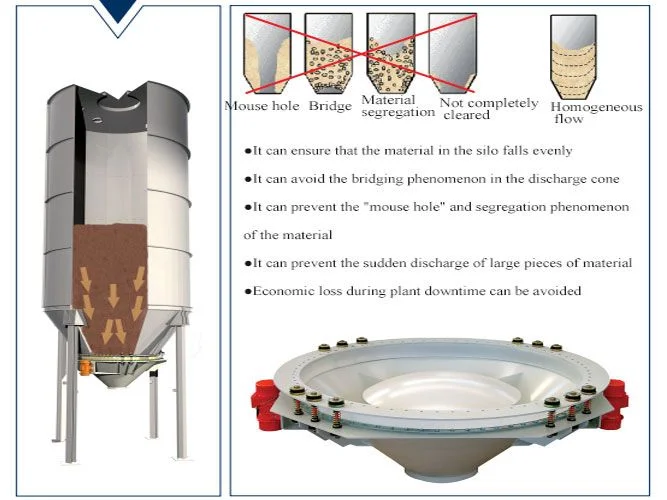

| Bin activator | Shear vibration at outlet | Pellets, granules, flakes | Requires structural modification |
Why Choose Manxing Discharge Systems
Engineering-first approach: We analyze your material properties, silo geometry, and flow requirements before recommending any discharge aid. No one-size-fits-all solutions.
Integrated design: Discharge aids are designed into the silo from day one, not added as afterthoughts. This reduces cost by 60% compared to retrofitting.
Smart control: All discharge aids connect to the silo PLC for sensor-triggered operation, reducing compressed air consumption by 40% compared to timer-based systems.
Global support: On-site commissioning, operator training, and spare parts supply for projects in 40+ countries.
Bottom Line
As leading manufacturers of silo discharge aids, Manxing provides complete flow promotion solutions including air cannons, aeration systems, vibratory devices, and intelligent control integration. Our discharge systems are designed to eliminate material blockages, reduce maintenance interventions, and ensure continuous, reliable silo operation across all bulk material types.
PDF
Product File
Manxing Industrial Silo Brochure
Manxing_Industrial_Silo_Brochure.pdf
Open the download form to unlock this file. The source page is recorded automatically in your customer submissions.
Case
Industrial Steel Silo EPC Solutions | Manxing's Proven Engineering Excellence
Manxing has successfully delivered comprehensive steel silo systems for cement, clinker, fly ash, and coal storage applications. Our extensive project portfolio demonstrates advanced engineering capabilities, innovative design, and consistent superior performance across diverse industrial sectors.
Silo System
Manxing is a leading EPC contractor specializing in bulk material storage and conveying systems, providing customized steel silo solutions for cement, fly ash, coal, clinker, slag, and other industrial materials worldwide.
